Measure the space before you choose what fills it.
Start with the cabinet, tile, and flooring measurements that shape an accurate plan. Use the guides below to document the room clearly, then bring the information into assisted design or your next project conversation.
Planning measurements are the starting point.
Final field dimensions, site conditions, product fit, and quantities must be verified before an order is released.
Follow the downloadable cabinet guide while you record each wall, opening, utility, appliance, and unusual site condition.
How to measure a kitchen
Build a clear record of the room.
The goal is not a perfect design on the first sketch. It is a complete, legible record of the walls, openings, utilities, appliances, and conditions that affect the cabinet plan.
- 01Sketch each wall and label the room orientation so the measurements stay connected to the correct surface.
- 02Record wall-to-wall and floor-to-ceiling dimensions, then measure doors, windows, trim, and the distance from each opening to the adjacent corner.
- 03Mark plumbing, electrical, vents, soffits, radiators, and any obstruction that could change cabinet depth, height, or placement.
- 04List appliance models or finished dimensions when known, and photograph every wall plus any unusual condition.
Choose the right guide
One project can need three different kinds of measurement.
Cabinets depend on walls, openings, appliances, and utilities. Tile and flooring depend on surface area, layout, transitions, cuts, and the installation plan. Keep each set of measurements distinct.
Tile & Backsplash

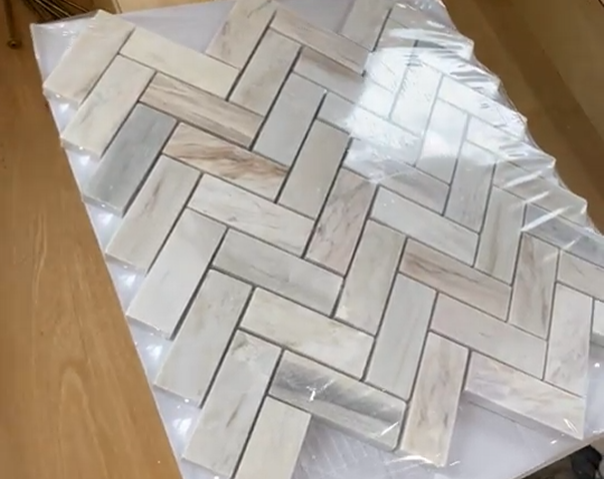

Record the surfaces to be covered, openings and exclusions, planned layout, and installation details before calculating material.
Open tile guideFlooring

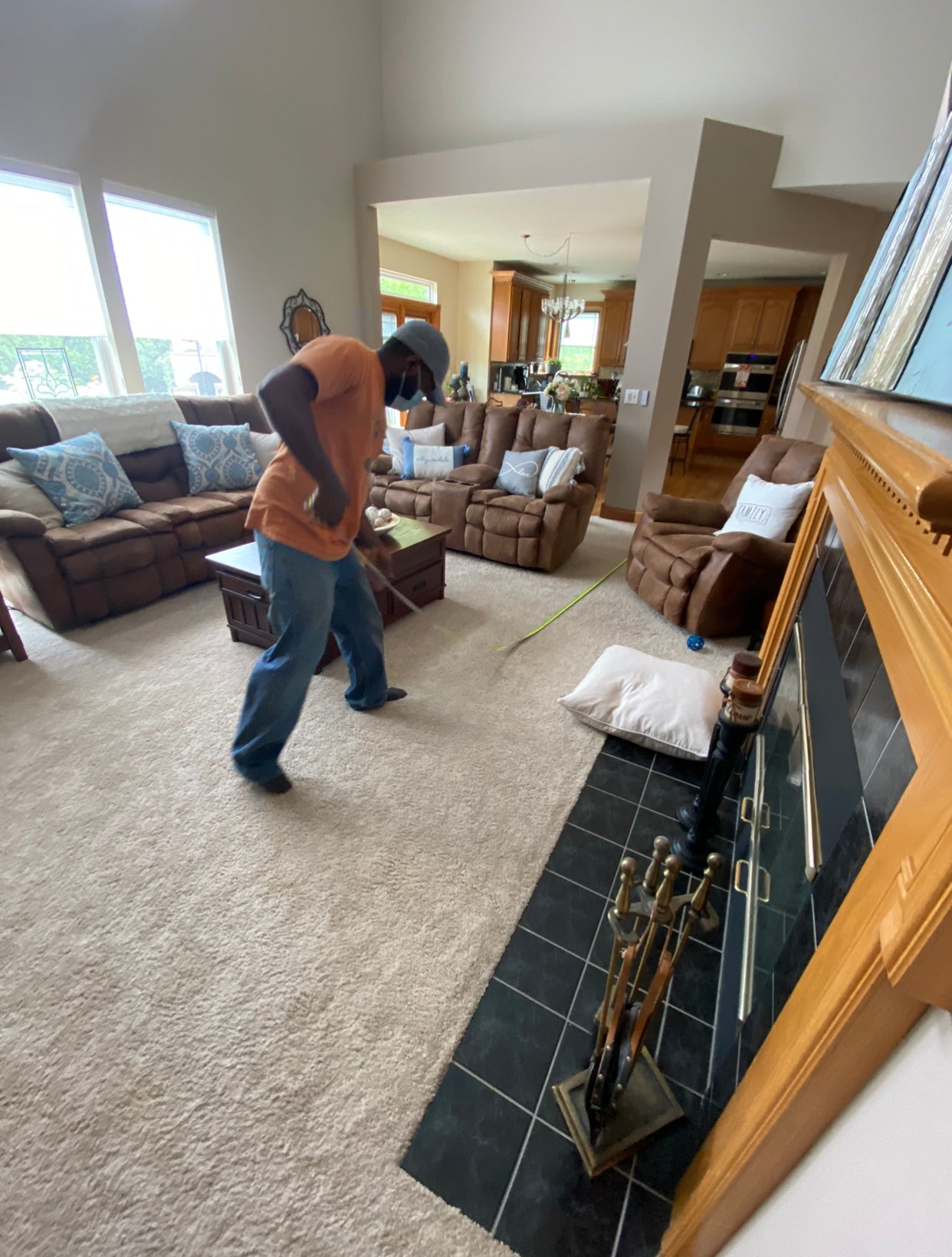

Measure each connected area, note irregular spaces and transitions, and keep product-specific layout and installation needs in the plan.
Open flooring guideBefore you submit
Measurement questions, answered clearly.
Do my first measurements have to be exact?
They should be careful and complete enough to begin planning, but they are not a substitute for final field verification. Mark any measurement you are unsure about so it can be reviewed before release.
What photos should I include?
Photograph every wall from straight on when possible, then add close views of openings, utilities, soffits, vents, unusual corners, and any condition that could affect product placement or installation.
What if I have not selected appliances yet?
Share the appliance type and the size range you are considering. The final model or verified finished dimensions and required clearances must be confirmed before the cabinet order is approved.
Can Emerald Fern Finishes verify the measurements for me?
Submit the project through assisted design and the team will confirm what information is needed for the planning process. Responsibility for final field verification and written order approval will be confirmed before release.
The next step

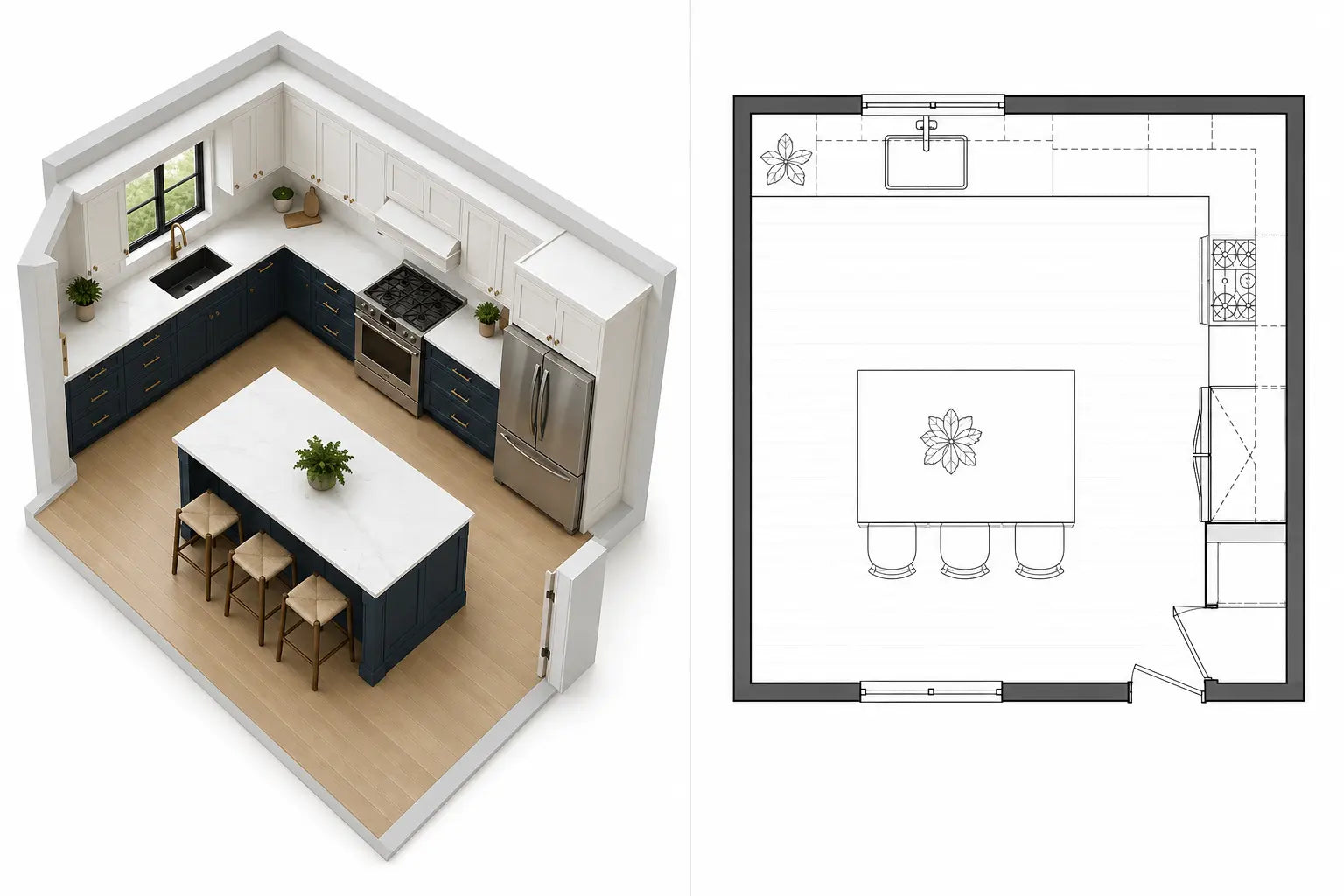

Bring the room into one connected plan.
Use assisted cabinet design when you are ready to share the measurements, photos, appliance information, openings, ceiling height, and project goals you have collected.
