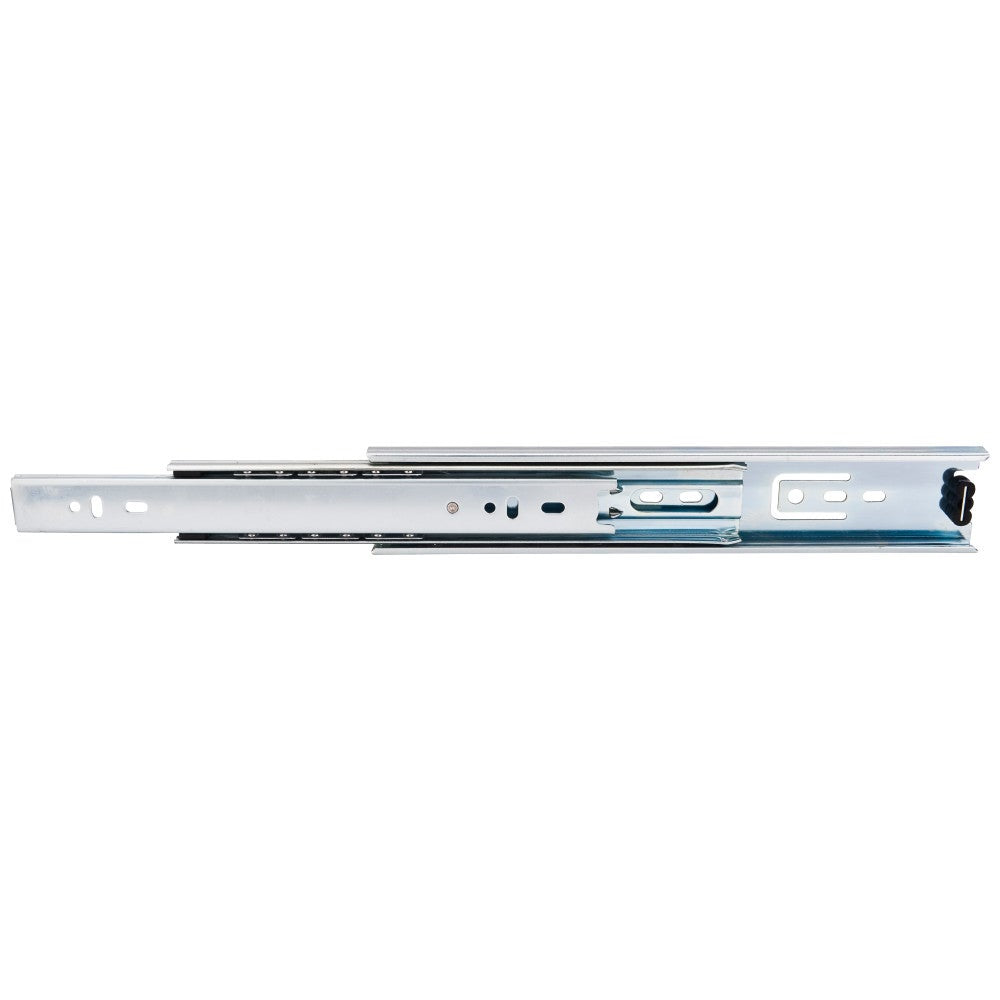

HR Max Ball-Bearing Drawer Slide
$11.21
The workhorse slide for rebuilding or upgrading a drawer. Full ball-bearing travel pulls the drawer all the way out so nothing hides at the back, and it carries a real load — rated to 100 lb.
Choose the standard full-extension version, or step up to the EZ-Open soft-close that eases the drawer shut on its own. Both are side-mount and install as a matched left/right pair.
Features
- 100 lb rated. Heavy-duty ball-bearing slides built for loaded drawers.
- Full extension. The drawer comes all the way out — full reach to the back.

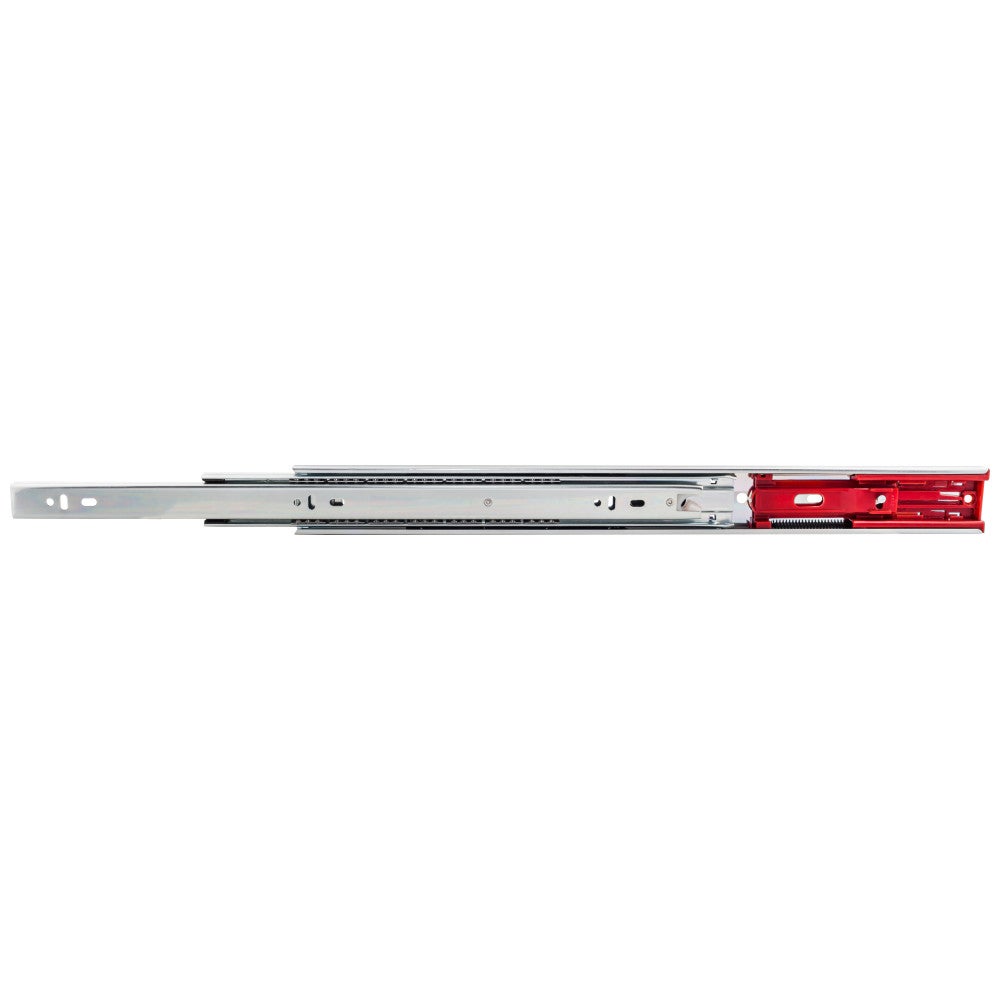

- Soft-close option. The EZ-Open version catches and closes the drawer quietly.
- Side mount, matched pair. Standard side-mount install; each pack is a left/right set.
Sizing
Measure your drawer depth and pick the matching slide length. Standard full-extension comes in 10" through 24"; the EZ-Open soft-close comes in 18", 20" and 22". Sold as a pair (one drawer). Not sure on length? Ask MJ below.
Specifications
| Type | Side-mount ball-bearing drawer slide |
|---|---|
| Styles | Full-extension · EZ-Open soft-close |
| Load rating | 100 lb |
| Extension | Full extension |
| Lengths | 10", 12", 14", 16", 18", 20", 22", 24" (soft-close: 18"/20"/22") |
| Mount | Side mount, sold as a left/right pair |
| Brand | Hardware Resources (HR Max™) |
| Sold By | Pair |
What's in the Box
- One matched pair of HR Max drawer slides in the selected style and length
- Mounting screws and instructions
